Graph Viewer

The AutoMem Graph Viewer is a standalone web application that renders your memory graph as an interactive 3D layout. It connects to the AutoMem API to fetch a bounded graph overview and lets you visually explore memories, relationships, clusters, and temporal patterns.

The automem API exposes /viewer compatibility routes that redirect into the graph viewer, so users can access it directly from a running AutoMem instance.

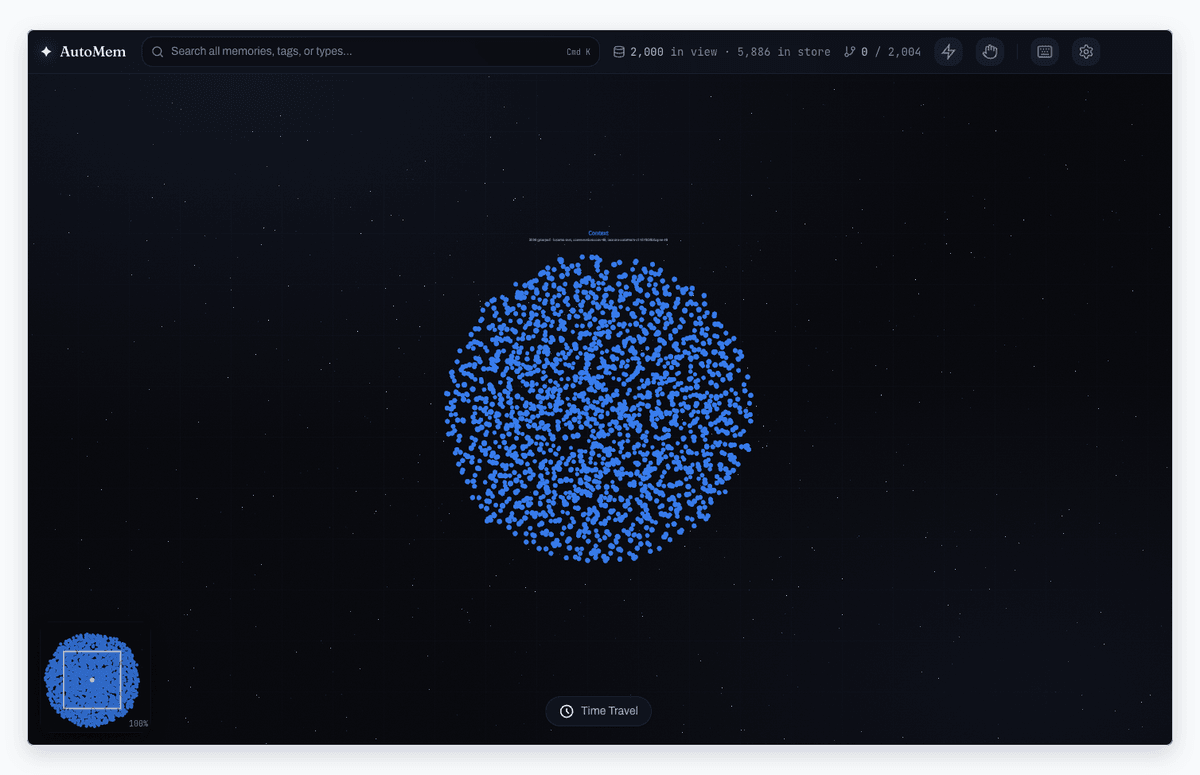

AutoMem Graph Viewer overview with 3D memory graph, search bar, stats, minimap, and timeline controls

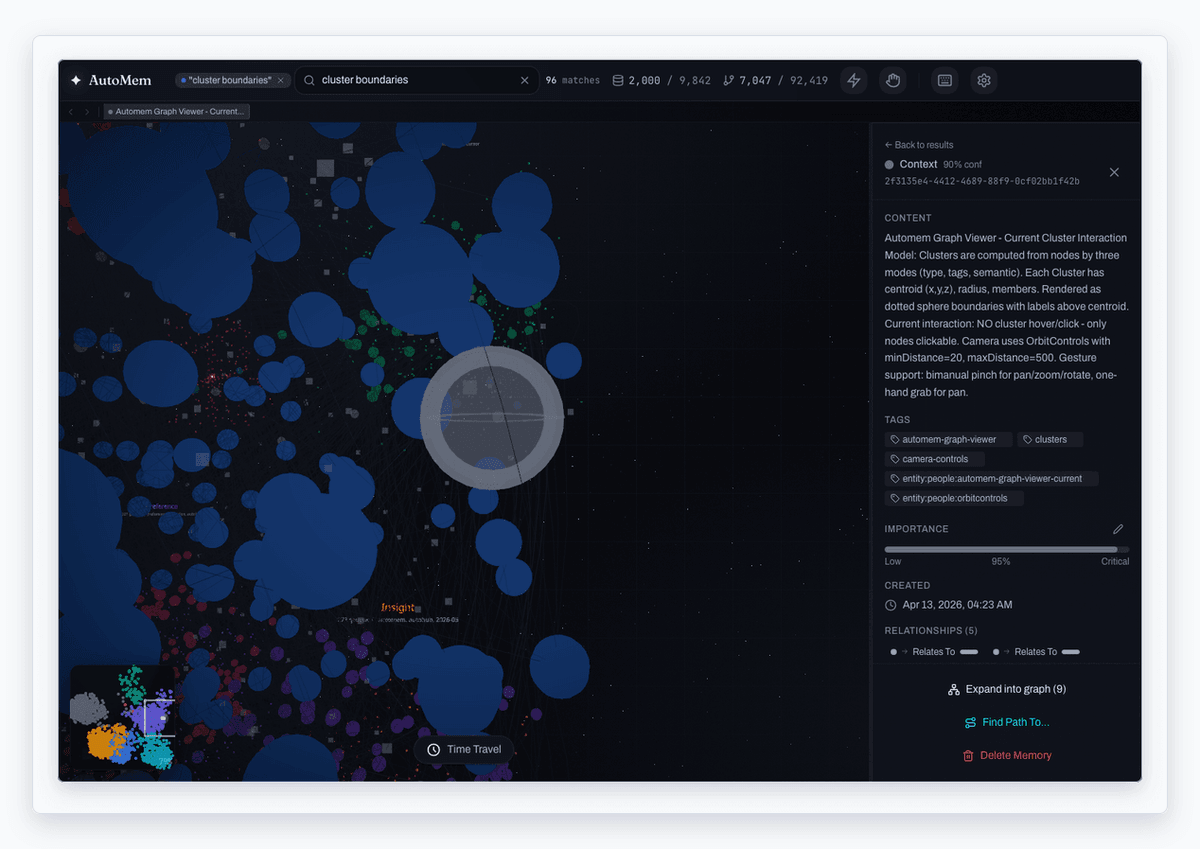

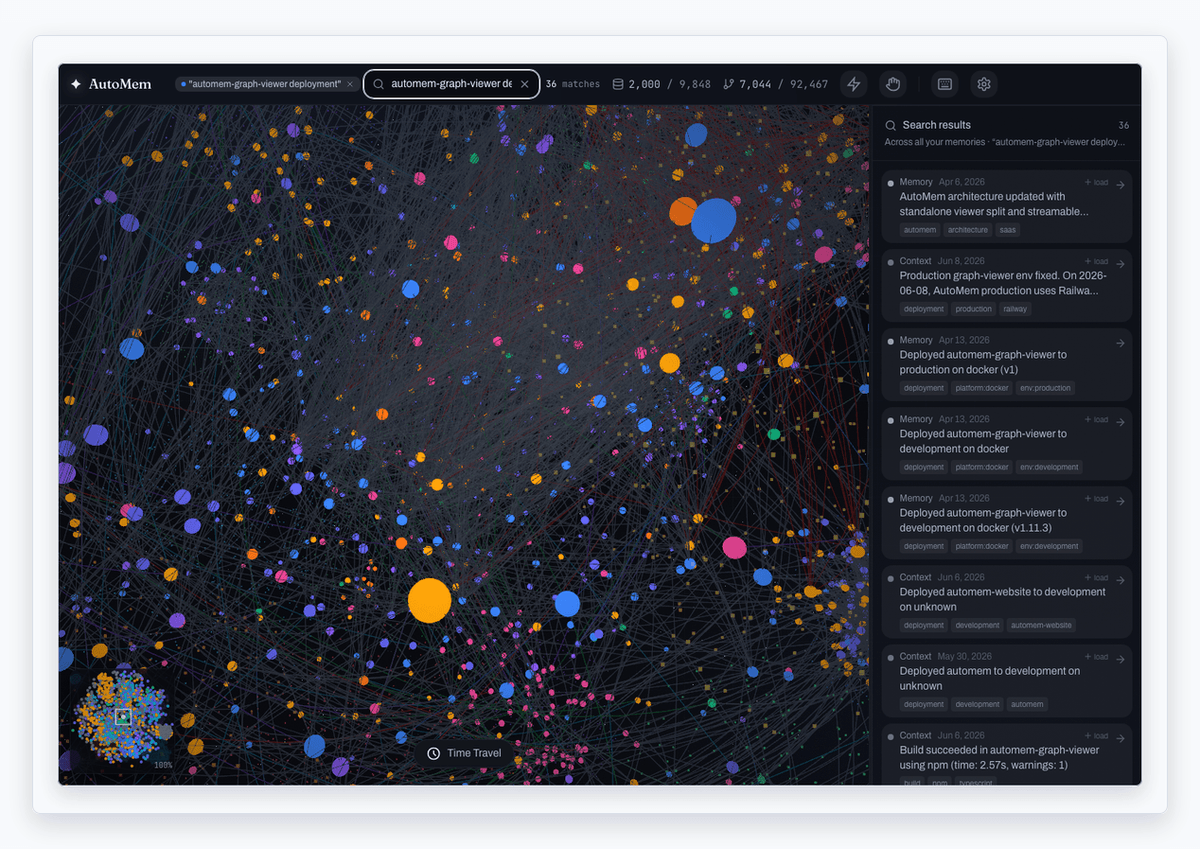

Whole-store search	Memory inspector

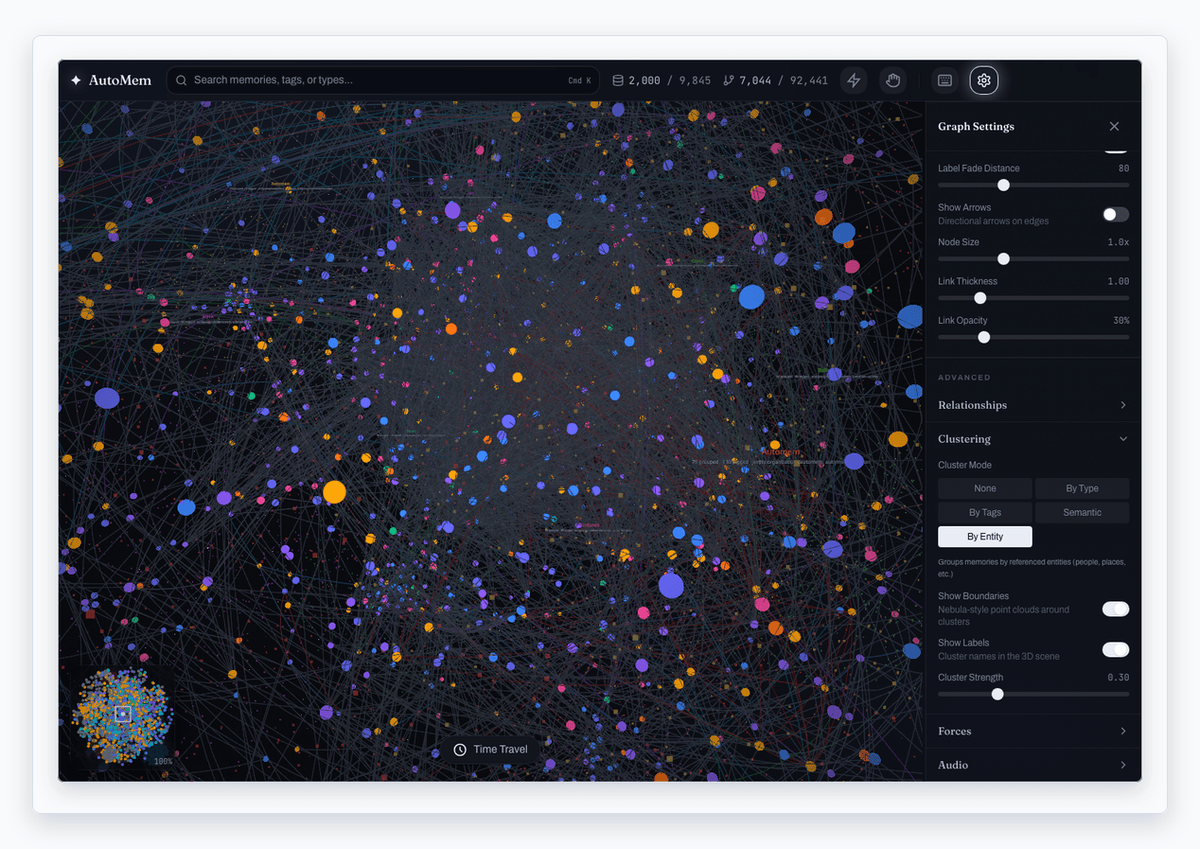

Graph settings drawer showing clustering mode controls and display options

Key Features

3D Graph Canvas

The core visualization uses React Three Fiber with d3-force-3d to render memory nodes and relationship edges in a physics-based 3D layout. Nodes are colored and sized by memory type, importance, or custom attributes. Edges reflect relationship types (RELATES_TO, LEADS_TO, EVOLVED_INTO, etc.) with distinct visual styles from the canonical palette.

The StatsBar uses honest scope language throughout the app:

Label	Meaning
In view	Memories loaded into the 3D scene (bounded overview + any expansions)
In store	Total memories on the server

The overview loads the most important memories first (default 2,000 nodes). Completeness comes from exploration, not loading the entire corpus at once.

Force layout configuration options include:

Parameter	Description
Charge strength	Repulsion between nodes
Link distance	Preferred edge length
Center gravity	Pull toward origin
Collision radius	Minimum node spacing

Expandable Graph

The useExpandableGraph hook maintains a live, growing graph on top of the immutable snapshot. Click Expand into graph in the Inspector to fetch a node’s neighborhood via /graph/neighbors and merge it into the scene. New nodes get a transient arrival glow and frontier ring on the selected node; the most recent expansion can be undone with a single-level undo.

Inspector Panel

Click any node to open the Inspector, which shows full memory details: content, type, confidence, tags, importance, timestamps, metadata, and connected relationships. You can edit importance, delete memories, expand neighborhoods, and start pathfinding from here. The panel is resizable via drag handles.

Search & Triage

SearchBar — Debounced search box with recent-search history. Tag-only queries filter the loaded graph client-side; text queries call whole-store semantic search via /recall.
SearchResultsList — A triage surface over /recall results: sort by relevance, recency, or importance; filter by memory type; load off-graph matches into the scene with a + load affordance. Clicking a result flies to an in-graph node or injects an off-graph one.

Timeline & Time Travel

The TimelineBar lets you scrub through your memory graph’s history. The useTimeTravel hook maintains temporal state so you can see how the graph evolved over time.

Pathfinding

Select two nodes and the PathfindingOverlay computes and highlights the shortest path between them through the relationship graph, using the usePathfinding hook.

Cluster Detection

Clustering modes group the graph spatially for legibility:

Mode	Groups by
By Type	Memory type (Decision, Pattern, Insight, etc.)
Tags	Primary tag
Semantic	Strongly-connected relationship clusters
By Entity	Referenced entities (people, places, etc.)

The useClusterDetection hook drives ClusterBoundaries and ClusterLabels around grouped subgraphs.

Breadcrumbs — Back/forward through your node selection history (useBreadcrumbs)
MiniMap — Viewport overview with zoom indicator
Keyboard navigation via useKeyboardNavigation: arrow keys to traverse nodes, Enter to select, / to focus search, ? for shortcuts help

Hand Tracking Controls

Hand gesture controls are available from the hand icon in the toolbar (no environment variable required). When enabled:

Pinch to select nodes
Grab to pan/rotate the view
Two-hand gestures for zoom and rotation
Optional iPhone LiDAR hand-tracking bridge for local dev (npm run dev:all)

This feature is experimental and requires camera permission.

Architecture

src/
├── App.tsx                    # Main app shell, state orchestration
├── api/
│   └── client.ts              # AutoMem API client (auth, fetch)
├── components/                # UI components
│   ├── GraphCanvas.tsx        # React Three Fiber 3D renderer
│   ├── Inspector.tsx          # Node detail panel + expand/delete
│   ├── SearchBar.tsx          # Search box (in-graph filter + /recall)
│   ├── SearchResultsList.tsx  # /recall triage surface
│   ├── TimelineBar.tsx        # Temporal scrubber
│   ├── PathfindingOverlay.tsx # Shortest-path visualization
│   ├── ClusterBoundaries.tsx  # Cluster boundary rendering
│   ├── ClusterLabels.tsx      # Cluster name labels
│   ├── StatsBar.tsx           # In-view vs in-store statistics
│   ├── MiniMap.tsx            # Overview minimap
│   ├── Breadcrumbs.tsx        # Selection history navigation
│   ├── TokenPrompt.tsx        # API token entry UI
│   └── settings/              # Force/display/cluster config
├── hooks/                     # React hooks (data, navigation, gestures)
│   ├── useGraphData.ts        # TanStack Query graph/recall fetches
│   ├── useExpandableGraph.ts  # Merge-on-expand graph model
│   ├── useAuth.ts             # Token management
│   ├── useForceLayout.ts      # Physics simulation config
│   ├── useTimeTravel.ts       # Temporal navigation
│   ├── usePathfinding.ts      # Shortest-path algorithm
│   ├── useClusterDetection.ts # Spatial clustering
│   ├── usePersistentState.ts  # Settings persisted to localStorage
│   └── ...
└── lib/
    ├── types.ts               # TypeScript type definitions
    ├── edgeStyles.ts          # Relationship visual styles
    ├── palette.ts             # Canonical type/edge colors
    └── sounds.ts              # UI sound effects

The app is a single-page React application built with Vite and TanStack Query. Settings (forces, display, clustering, relationships) persist via usePersistentState. The API client handles authentication and communicates with the AutoMem REST API.
